A Mill Test Certificate is useful only if it answers three questions quickly: is this the right heat, does the chemistry meet the ordered standard, and will the paperwork hold up if the lot turns into a claim. Here is how to read each section, what red flags should stop a shipment, and how to handle ASTM vs EN cross-standard conflicts.
A Mill Test Certificate is useful only if it answers three questions quickly:
If any of those answers is unclear, the MTC is not a release document yet. It is just a PDF that needs investigation.
| Field | Why it matters |
|---|---|
| Producing mill | Confirms who made the material, not merely who sold it |

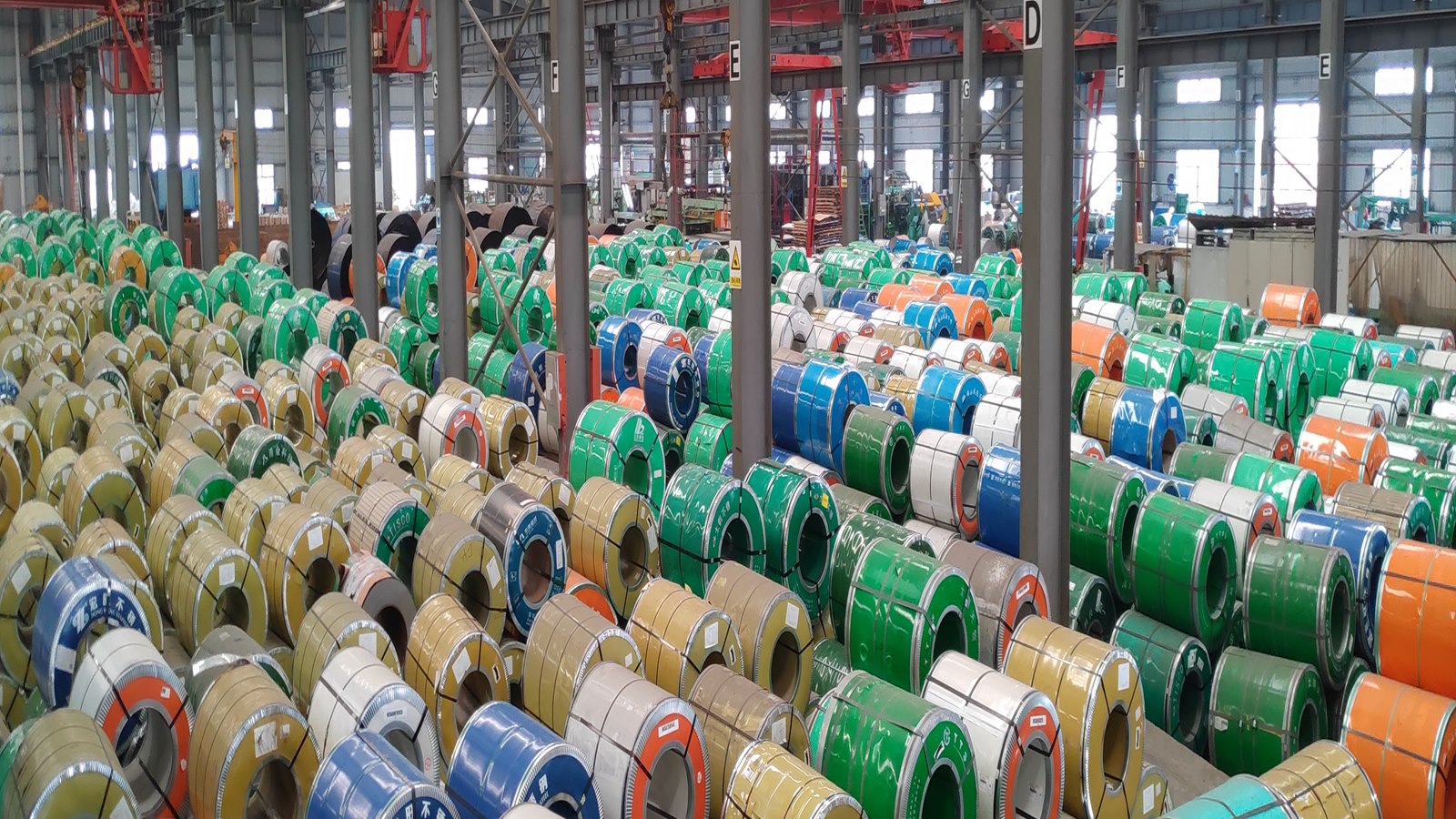

| Heat number | Links the certificate to the physical steel |
| Grade and product standard | Defines the chemistry and mechanical limits |
| Actual chemistry | Proves the heat, rather than only a nominal grade |
| Mechanical test results | Confirms condition and product route |
| Certificate type and signature | Shows document authority |
For international stainless trade, EN 10204 Type 3.1 is the normal document level. Type 2.2 is often too weak for serious B2B release. Type 3.2 is used when an independent witness or project code requires it.
Do not start by looking at tensile strength. If the heat number does not match, the rest of the document is not tied to the steel in front of you.
For common stainless orders, four chemistry fields catch many substitutions and weak certificates.
| Field | What to check |
|---|---|
| Carbon | L-grades should meet the low-carbon limit, usually ≤0.030% |
| Chromium | Confirms the stainless family and minimum passive-film chemistry |
| Nickel | Separates 200/300-series behavior and cost structure |
| Molybdenum | Confirms 316L/duplex chloride-resistance route |
For a 316L order, Mo should not be zero. For an L-grade welded assembly, carbon cannot be treated casually. For duplex, nitrogen and the exact UNS designation matter.
When two standards are named, check against both. A heat can pass ASTM and still fail EN because one element limit is different.
Mechanical values confirm that the product route produced the required condition. They are release evidence, not decorative numbers.
| Value | What it can reveal |
|---|---|
| Tensile strength | General strength level and cold-work indication |
| Yield strength | Design and pressure-equipment relevance |
| Elongation | Formability and annealing condition |
| Hardness | Heat-treatment or cold-work problems |
Values barely above minimum can still be compliant. Values outside the expected range deserve a question. High hardness on a supposedly annealed product, low elongation on a forming grade, or missing mechanical results on a specific inspection certificate should slow the release.
Hold the material or document when you see:
These are not small formatting issues. They weaken traceability, compliance, or claim defense.

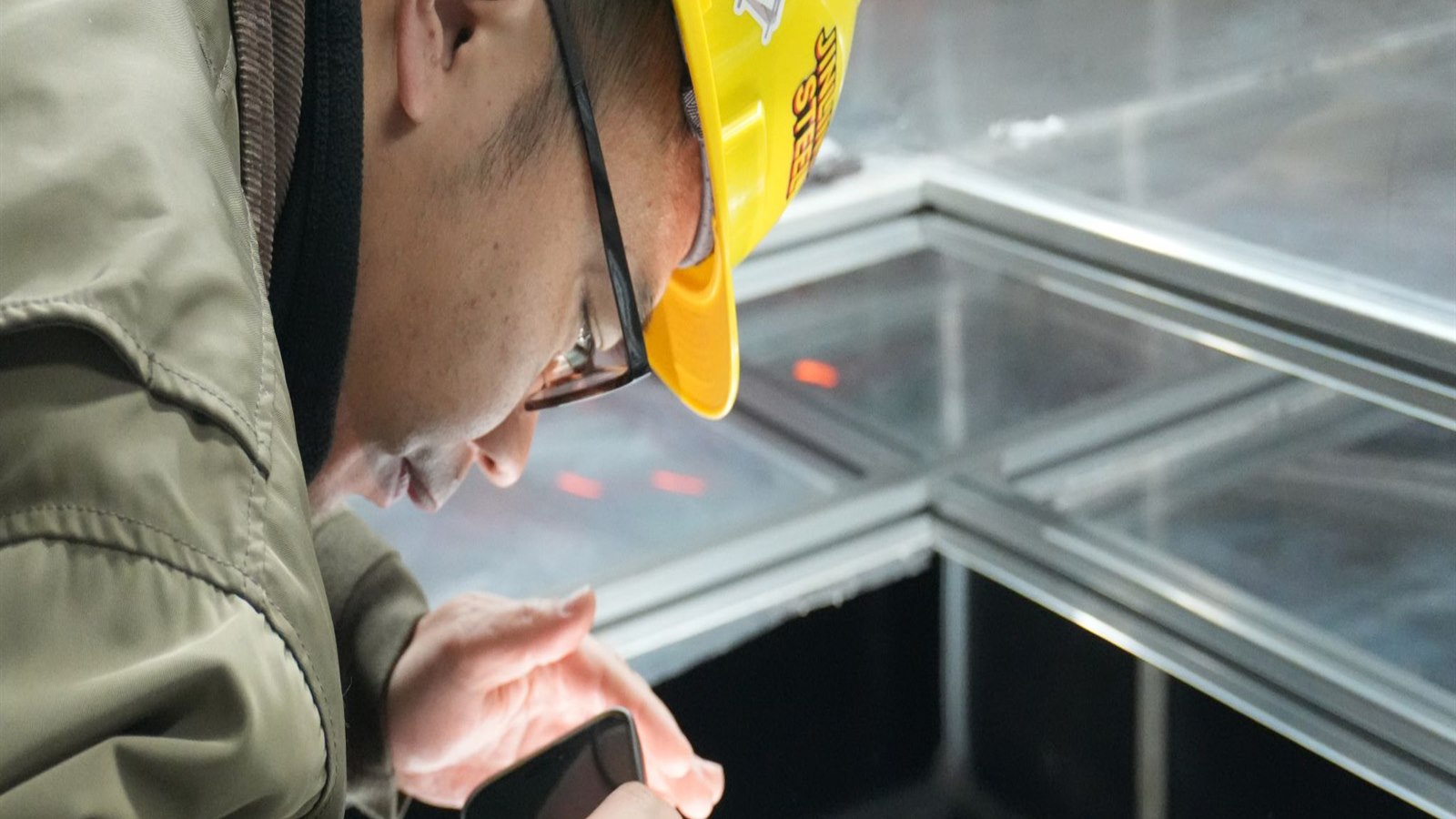

When paperwork is not enough, verify the steel itself.
| Method | Best use |
|---|---|
| PMI / XRF | Fast check of Cr, Ni, Mo, Mn for grade identity |
| OES | More complete chemistry, including carbon |
| Hardness test | Heat treatment, cold work, or wrong condition |
| Magnet check | Quick family clue, not final proof |
| Dimensional check | Confirms ordered size and tolerance |
PMI does not replace the MTC, and the MTC does not replace physical verification on high-risk orders. They answer different parts of the same release question.
Do not assume ASTM 316L and EN 1.4404 paperwork are automatically interchangeable. They are close commercial equivalents, but individual element limits and certificate wording can differ.
If the PO names both standards, the MTC should name both standards. If the MTC names only one, someone has to verify the heat against the other before shipment. For export orders, it is cleaner to request dual certification at order stage than to repair the document after the vessel is booked.
A usable MTC should let a receiving inspector say:
This heat is the material in front of me.
This heat meets the standard on the PO.
This certificate is specific, signed, and defensible.
If the document cannot support those three sentences, do not release the lot yet.
For export stainless orders, the practical default should be EN 10204 Type 3.1 with heat-specific chemistry and mechanical results. For pressure equipment, PED, NACE, or buyer-witnessed projects, Type 3.2 or third-party inspection must be planned before production release.
The best documentation is built into the order. It is rarely rescued cleanly at the receiving dock.
